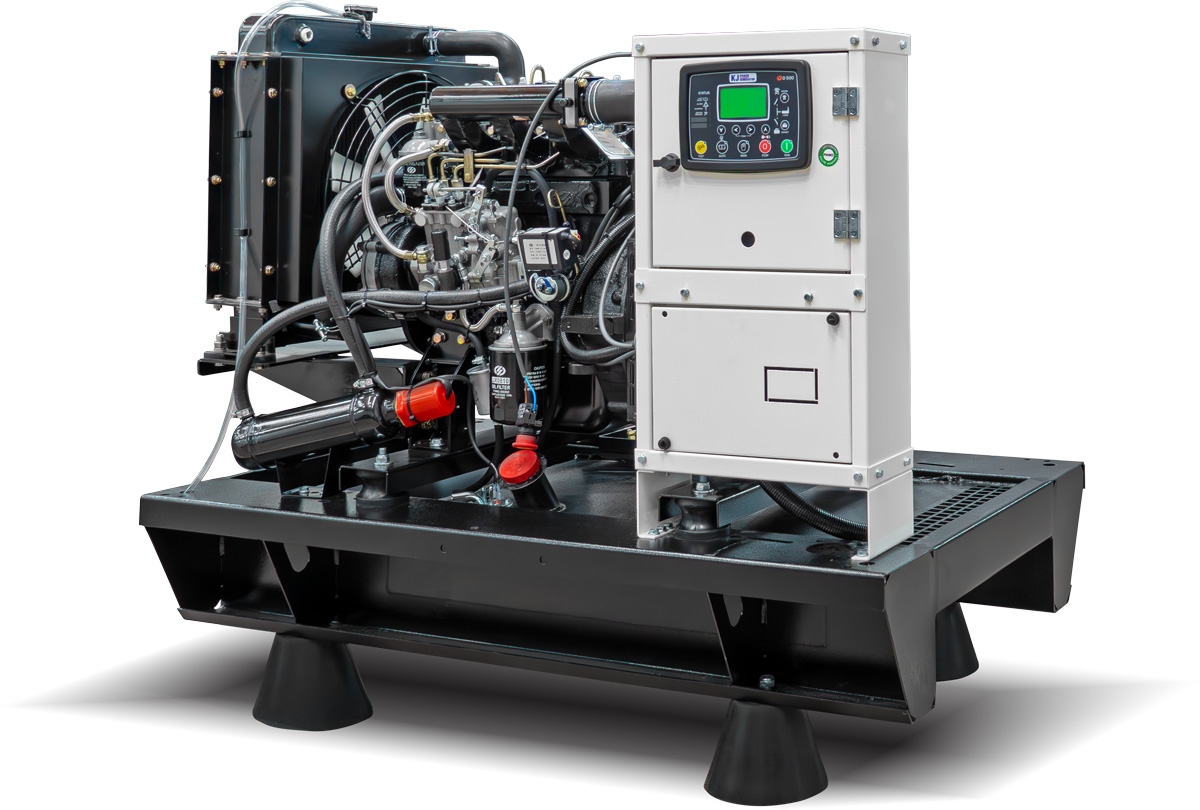

YANGDONG 12 kVA Diesel Generator Model KJYD12.1
The YANGDONG KJYD12.1 diesel generator is a powerful option developed to meet the energy needs of large-scale projects.
The YANGDONG-engineered YD380D engine provides 12kVA / 9,6 kW standby power and approximately 10.9kVA prime power with 50 Hz frequency, ensuring stable energy flow; the generator's canopy weighs around 475 kg.
12kVA capacity provides continuous power in emergencies or where mains supply is insufficient; its rugged design and highly insulated canopy offer long service life and quiet operation.
The harmony of engine and alternator in this model delivers long-lasting and steady power; designed by KJ Power Generator, the diesel generator provides competitive pricing opportunities for users with varying requirements.
12kVA YANGDONG diesel generator model price and other details, please contact us. +90 444 59 30
Power Prime
Power Standby
Weight with Canopy
Fuel Type
| Technical Specifications | Unit | Values |
| Power Prime | (kVA/kW) | 10,9 / 8,7 |
| Power Standby | (kVA/kW) | 12 / 9,6 |
| Output Voltage | (V) | 231 |
| Diesel Engine | ||
| Brand | YANGDONG | |
| Model | YD380D | |
| Speed | (rpm) | 1500 |
| Alternator | ||
| Frequency | (Hz) | 50 |
| Steady State Voltage Regulation (Max) | (+/-) | ±1 % |
| Insulation Class | H | |
| Power Factor | (cos φ) | 0,8 |
| Optional Specifications |
| 3P or 4P Alternator Protection Circuit Breaker |
| 3P or 4P Automatic Transfer Panel |
| Fuel-Water Separator |
| Oil Heater |
| Alternator Winding Heater |
| Alternator Temperature Sensors (RTD’s) |
| Charging Current Ammeter |
| Battery Circuit Breaker |
| PMG Excitation System |
| Control Panel with Analog Gauges |
| Set Mounted or Separately Designed Synchronization Systems |
| External Fuel Tanks |
| Underbase or External Type Double-Walled Fuel Tank |
| Automatic Fuel Transfer Pump |
| Electrical or Manual Oil Drainage Pump |
| Electrical or Manual Air Intake and Exhaust Louvers |
| Air Intake Heater |
| Remote Cooling System |
| Different Voltage and/or Frequency Options |
| Modular Type Sound Attenuated Canopy |
| Container Type Sound Attenuated Canopy |
| Dimension Specifications | ||
| Canopy Type Dimensions | ||
|
||
| Documents |
