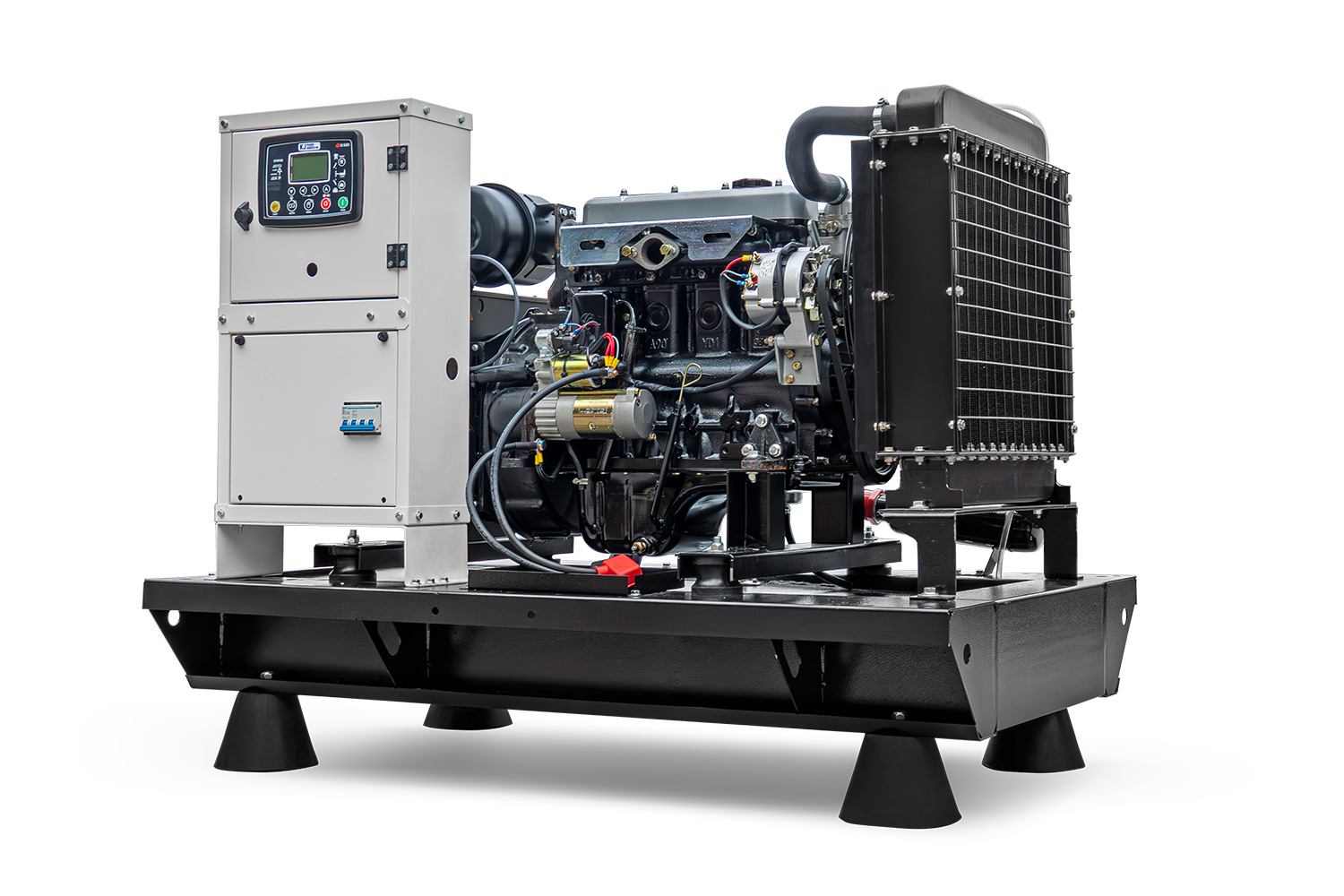

KJYD22.1 22 kVA Diesel Generator

Yangdong KJYD22.1 22 kVA Diesel Generator 18 kW Meet your energy needs with reliable and efficient diesel generator options. KJ Power

Brand KJ Power Generator

Engine Yangdong YND485D

Type Diesel Generator

kVA Rating 22 kVA

Fuel Type Diesel

Canopy Weight 664 kg

Origin Türkiye

Phase Type Three Phase

Power Prime 20 kVA

Power Standby 22 kVA

Product Description

The YANGDONG KJYD22.1 diesel generator is a robust product that won't let you down when your energy needs increase.

Combining the YND485D engine and YANGDONG's expertise, it offers 22kVA / 17,6 kW standby power with a prime output of 20 kVA at 50 Hz; the robust canopy weighs roughly 664 kg.

22kVA capacity provides continuous power in emergencies or where mains supply is insufficient; its rugged design and highly insulated canopy offer long service life and quiet operation.

Engine-alternator integration in the KJYD22.1 model ensures high efficiency; manufactured under the assurance of KJ Power Generator, this diesel generator stands out with economical price alternatives for diverse applications. Thanks to its single-phase structure, this generator provides a practical, economical, and reliable solution for low to medium-scale energy needs.

22kVA YANGDONG diesel generator model price and other details, please contact us. +90 444 59 30

Technical Specifications	Unit	Values
Prime Power	(kVA/kW)	20 / 16
Standby Power	(kVA/kW)	22 / 17,6
Output Voltage	(V)	231
Diesel Engine
Brand		YANGDONG
Model		YND485D
Speed	(rpm)	1500
Total Displacement	(l)	2,156
Alternator
Frequency	(Hz)	50
Steady State Voltage Regulation (Max)	(+/-)	±1 %
Insulation Class	(cos φ=0,8)A	H

Optional Specifications
3P or 4P Alternator Protection Circuit Breaker
3P or 4P Automatic Transfer Panel
Fuel-Water Separator
Oil Heater
Alternator Winding Heater
Alternator Temperature Sensors (RTD’s)
Charging Current Ammeter
Battery Circuit Breaker
PMG Excitation System
Control Panel with Analog Gauges
Set Mounted or Separately Designed Synchronization Systems
External Fuel Tanks
Underbase or External Type Double-Walled Fuel Tank
Automatic Fuel Transfer Pump
Electrical or Manual Oil Drainage Pump
Electrical or Manual Air Intake and Exhaust Louvers
Air Intake Heater
Remote Cooling System
Different Voltage and/or Frequency Options
Modular Type Sound Attenuated Canopy
Container Type Sound Attenuated Canopy

Dimension Specifications
Canopy Type Dimensions

Documents

Datasheet
