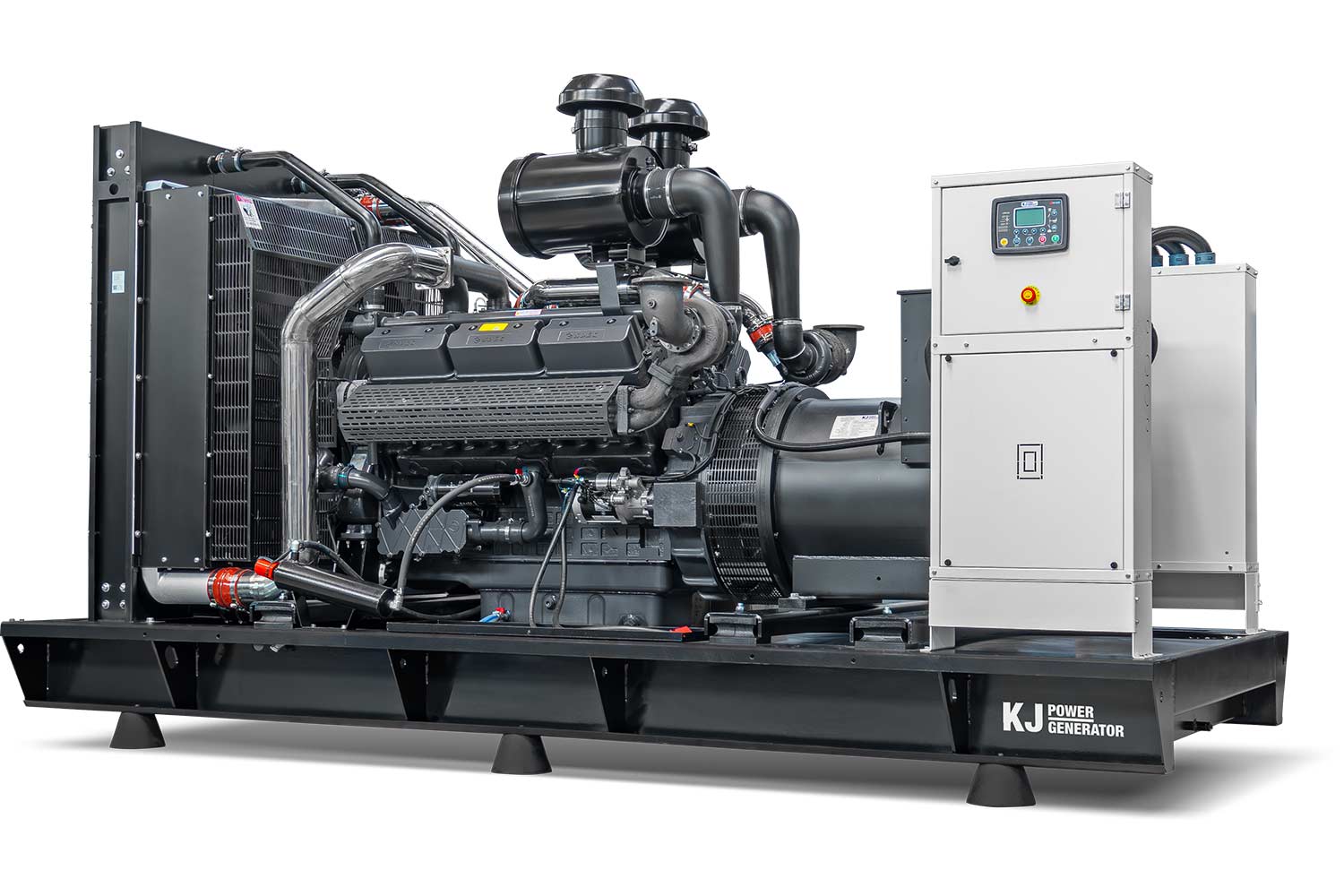

SDEC 500kVA Diesel Generator Model KJS500
The SDEC KJS500 diesel generator guarantees efficient operation even under harsh conditions thanks to its high capacity.
This 500 kVA model stands out with a SDEC SC25G610D2 engine; 50 Hz frequency, 1500 rpm speed and 455 kVA prime power guarantee efficiency, and its canopy weight is about 4850 kg.
500 kVA capacity provides continuous power in emergencies or where mains supply is insufficient; its rugged design and highly insulated canopy offer long service life and quiet operation.
Perfect synchronisation of alternator and engine enables stable energy production in the KJS500 generator; carrying the signature of KJ Power Generator, this diesel generator offers suitable price options across a wide range of uses.
500 kVA SDEC diesel generator model price and other details, please contact us. +90 444 59 30
Power Prime
Power Standby
Weight with Canopy
Fuel Type
| Technical Specifications | Unit | Values |
| Power Prime | (kVA/kW) | 455 / 364 |
| Power Standby | (kVA/kW) | 500 / 400 |
| Output Voltage | (V) | 400/231 |
| Diesel Engine | ||
| Brand | SDEC | |
| Model | SC25G610D2 | |
| Speed | (rpm) | 1500 |
| Alternator | ||
| Frequency | (Hz) | 50 |
| Steady State Voltage Regulation (Max) | (+/-) | ±1 % |
| Insulation Class | H | |
| Power Factor | (cos φ) | 0.80 |
| Optional Specifications |
| 3P or 4P Alternator Protection Circuit Breaker |
| 3P or 4P Automatic Transfer Panel |
| Fuel-Water Separator |
| Oil Heater |
| Alternator Winding Heater |
| Alternator Temperature Sensors (RTD’s) |
| Charging Current Ammeter |
| Battery Circuit Breaker |
| PMG Excitation System |
| Control Panel with Analog Gauges |
| Set Mounted or Separately Designed Synchronization Systems |
| External Fuel Tanks |
| Underbase or External Type Double-Walled Fuel Tank |
| Automatic Fuel Transfer Pump |
| Electrical or Manual Oil Drainage Pump |
| Electrical or Manual Air Intake and Exhaust Louvers |
| Air Intake Heater |
| Remote Cooling System |
| Different Voltage and/or Frequency Options |
| Modular Type Sound Attenuated Canopy |
| Container Type Sound Attenuated Canopy |
| Dimension Specifications | ||

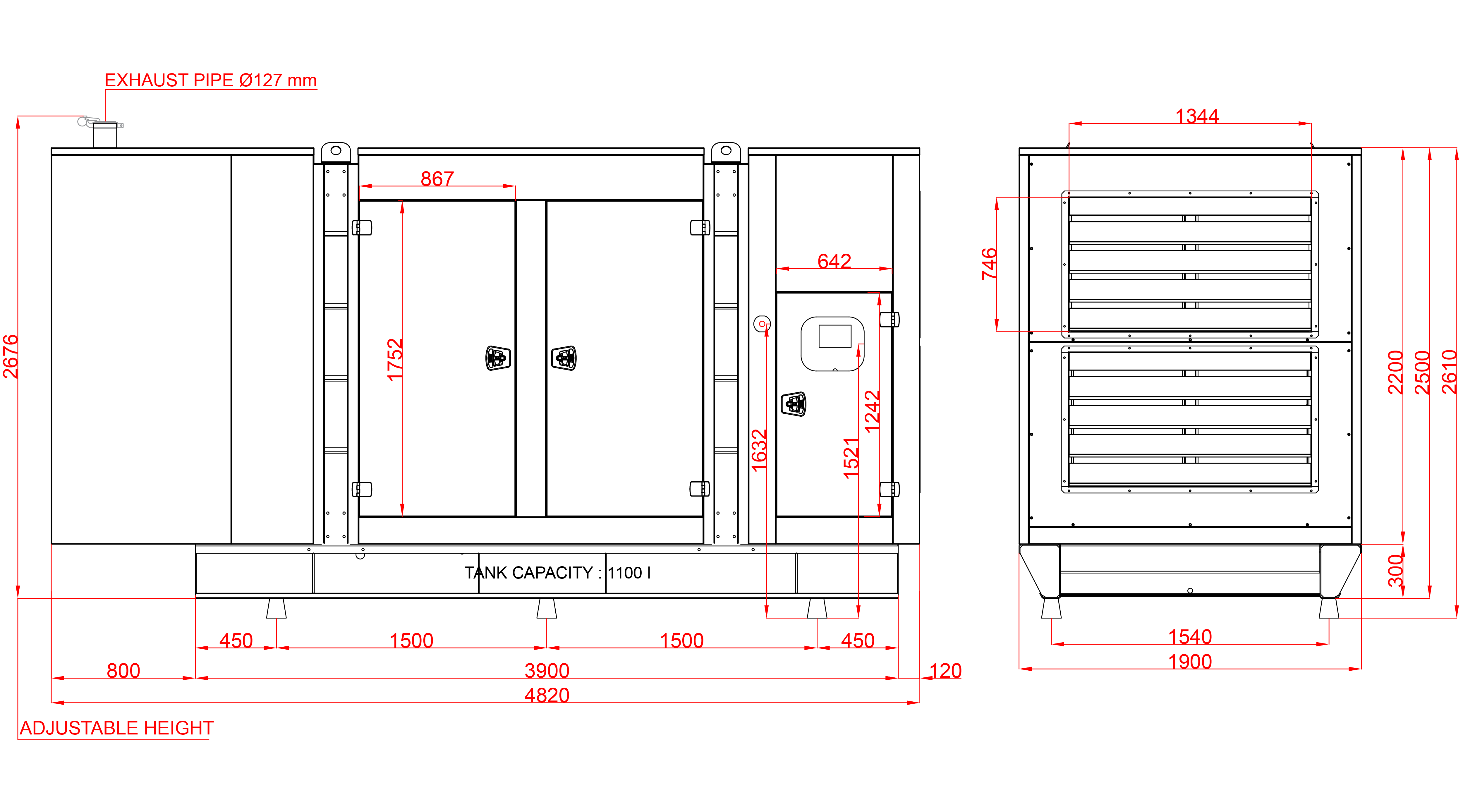

| Canopy Type Dimensions | ||
|
||
| Open Type Dimensions | ||
|
||
| Documents |
